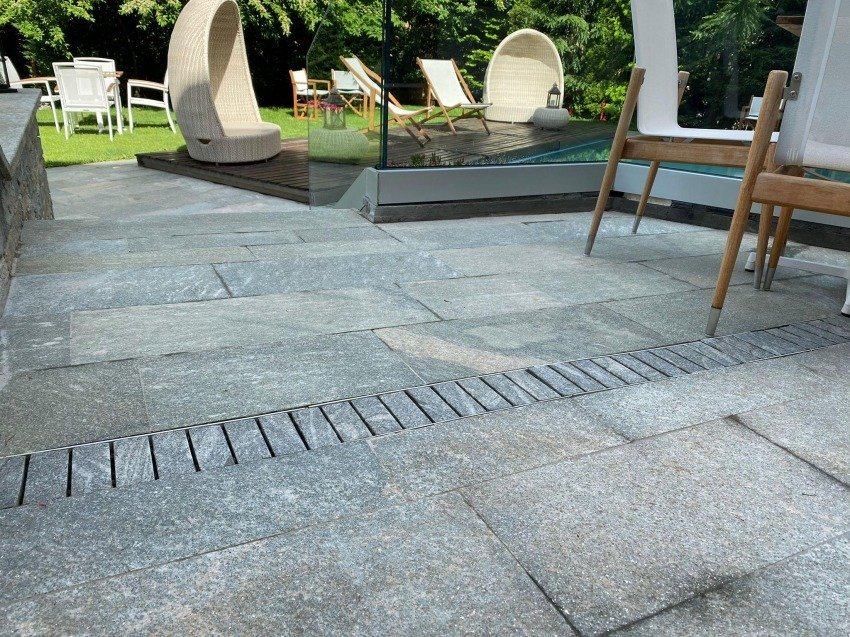

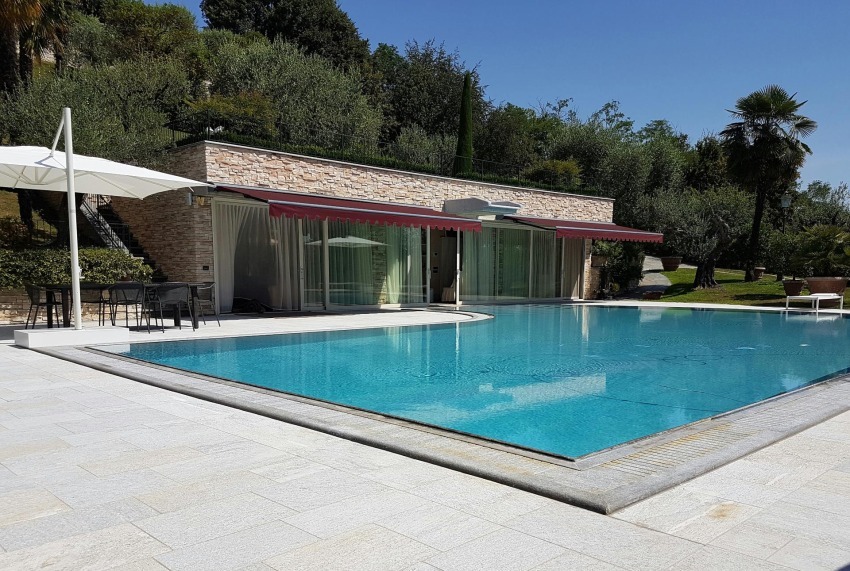

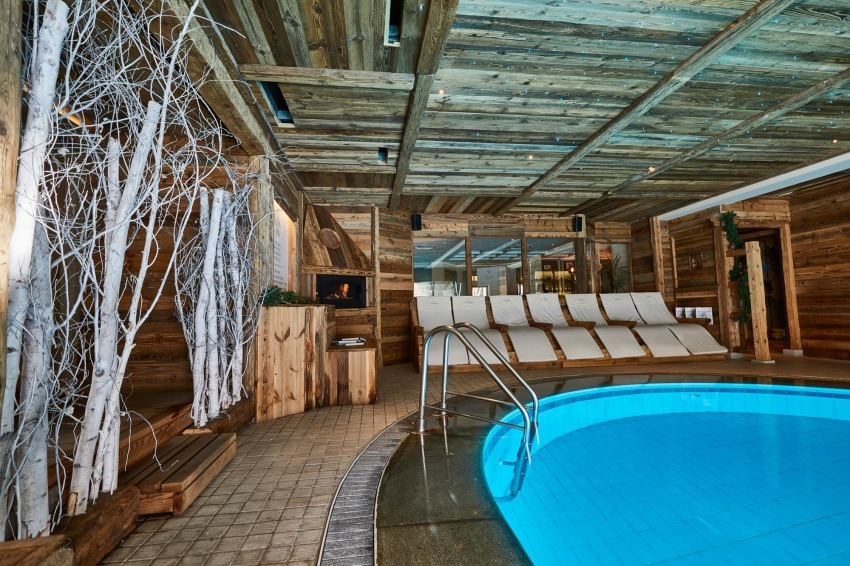

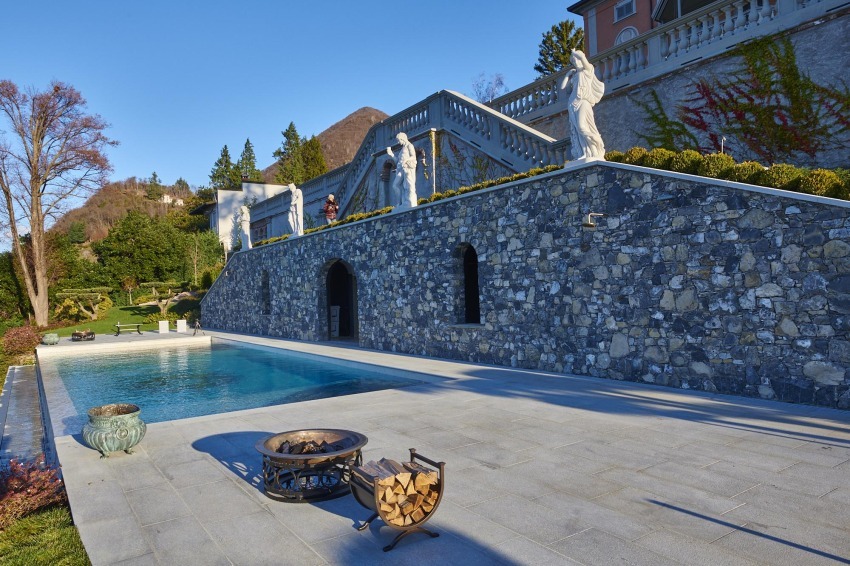

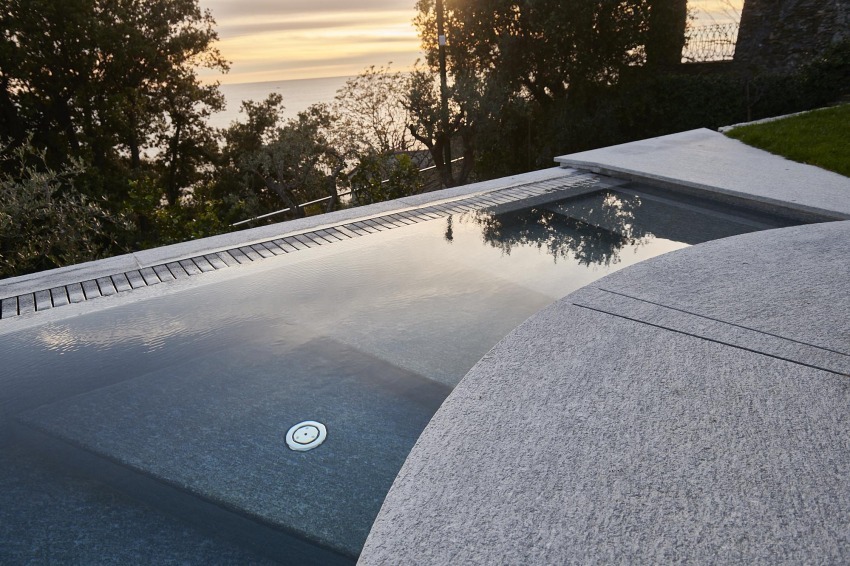

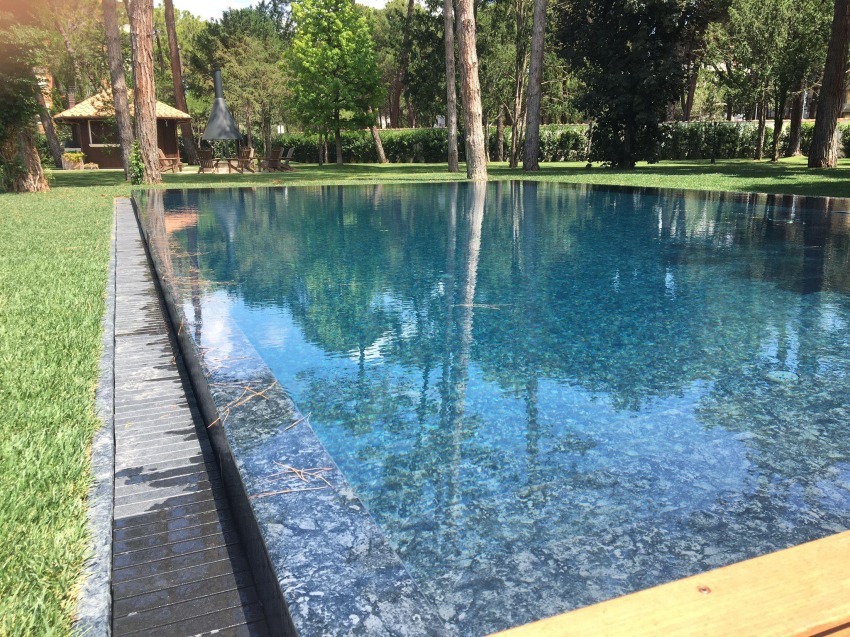

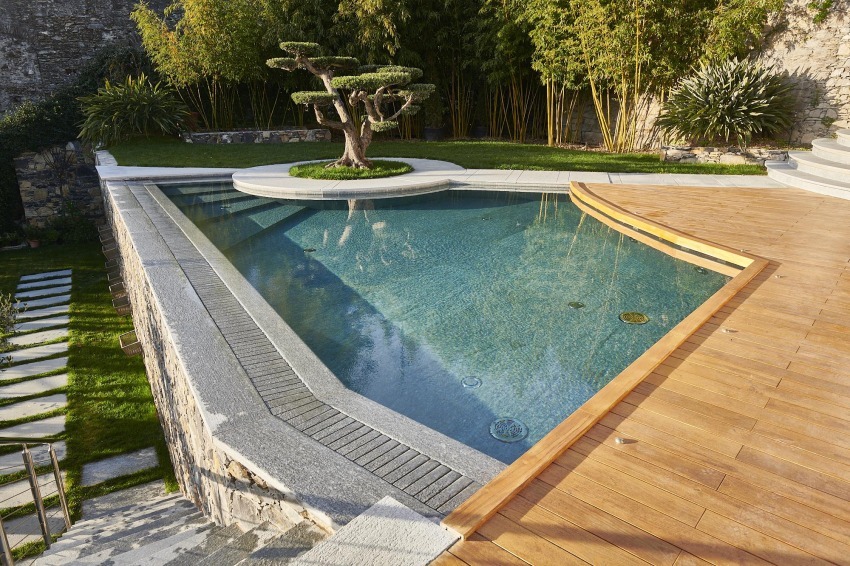

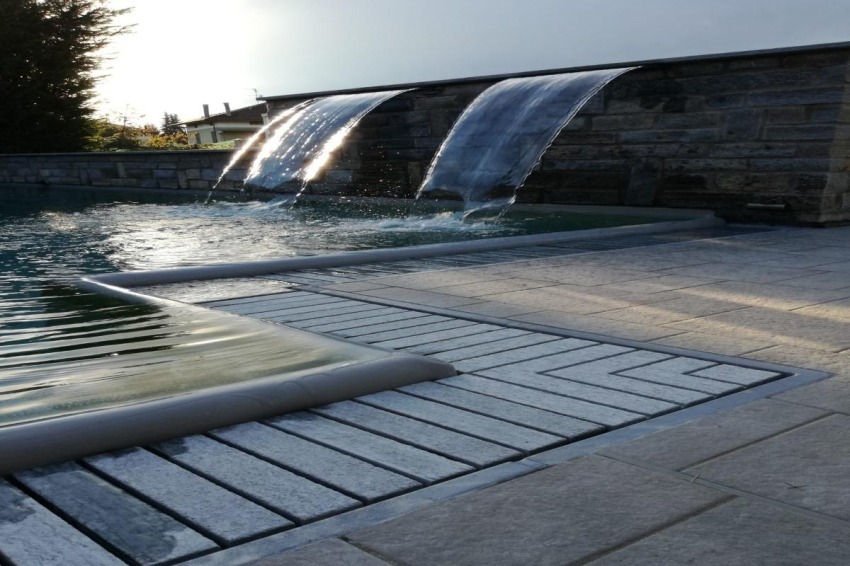

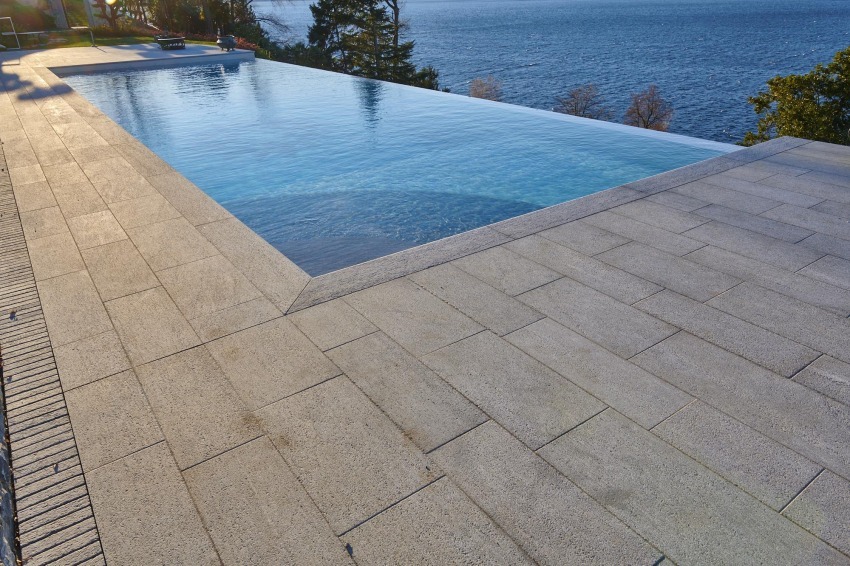

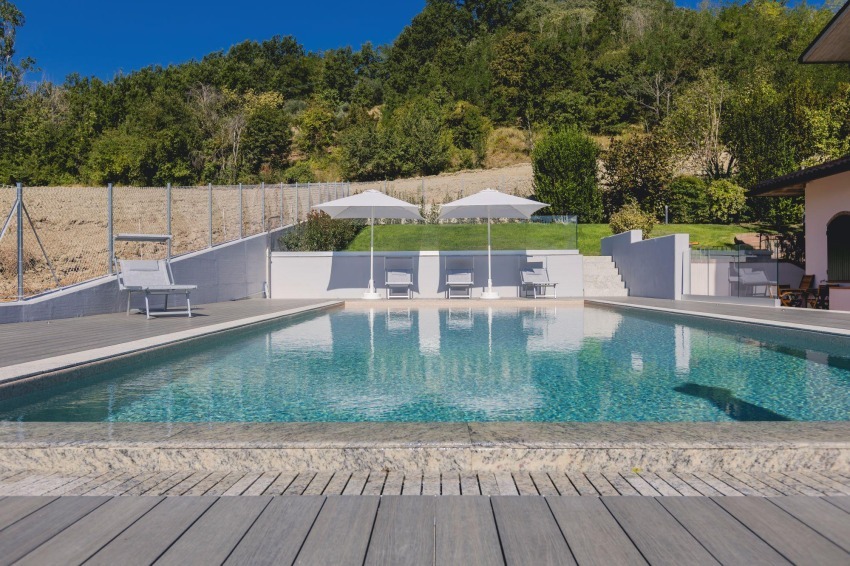

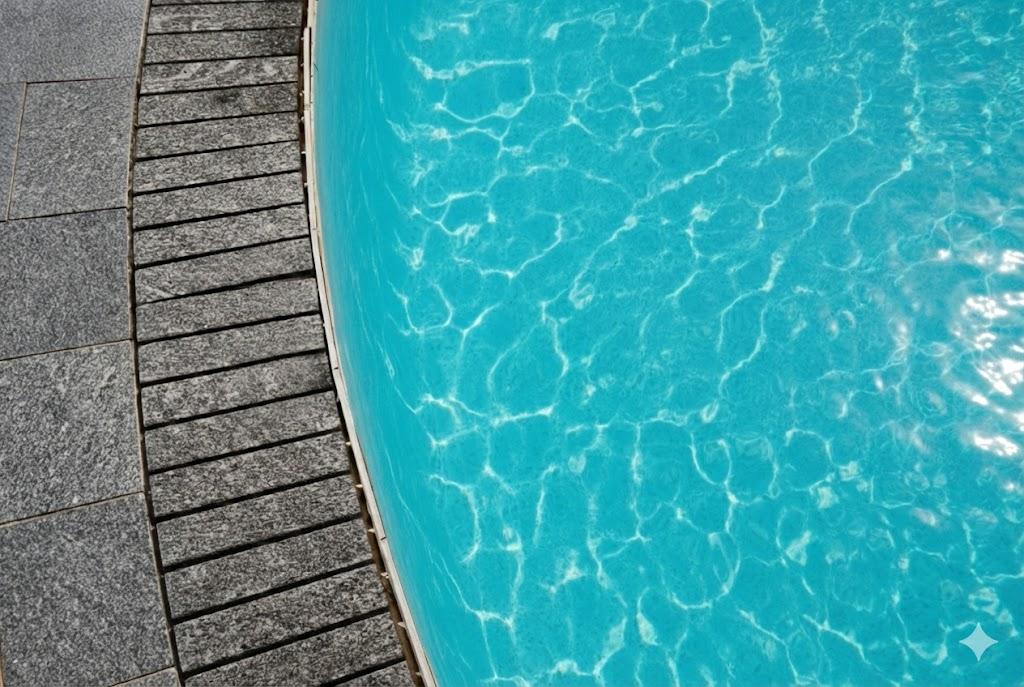

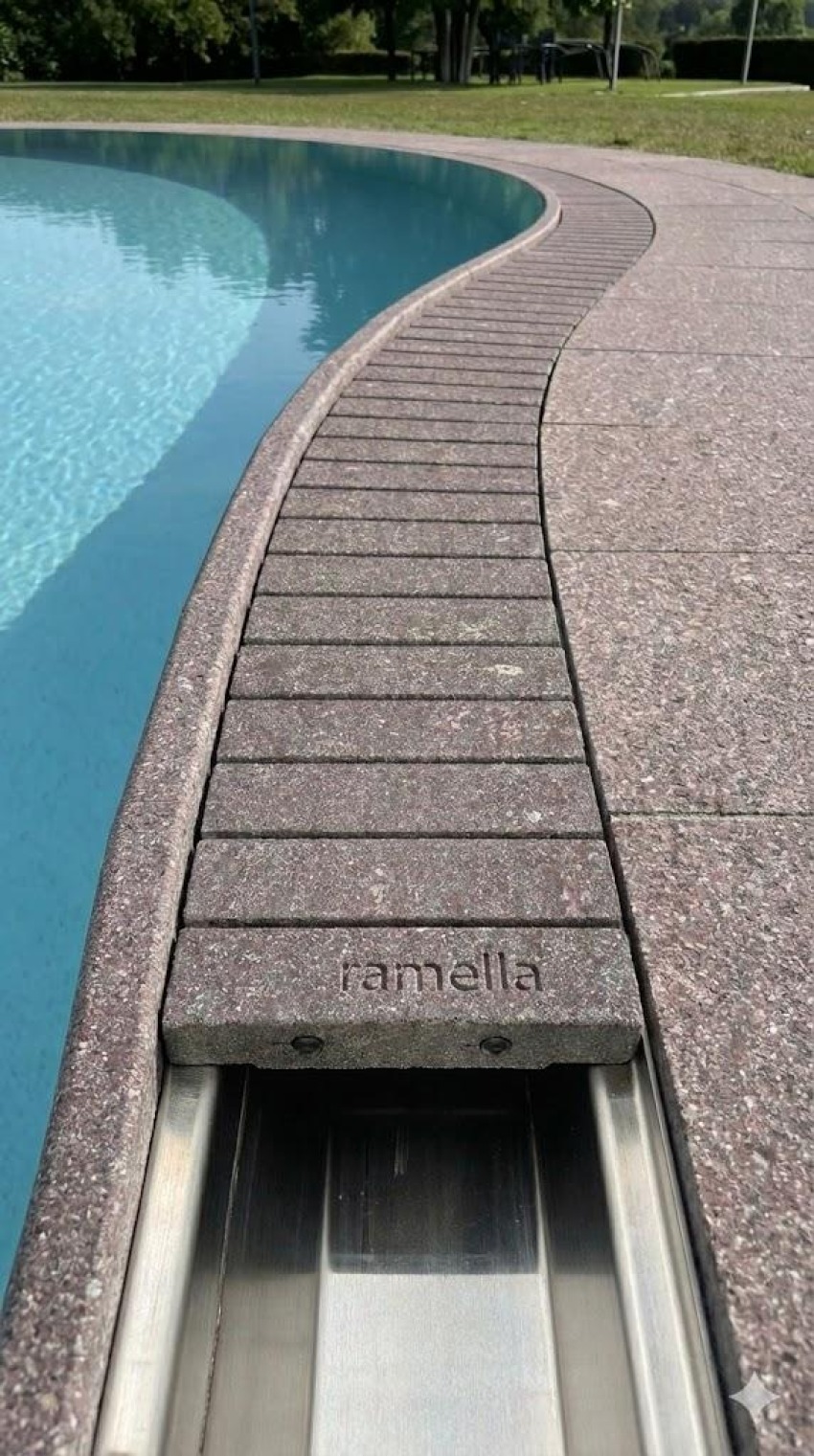

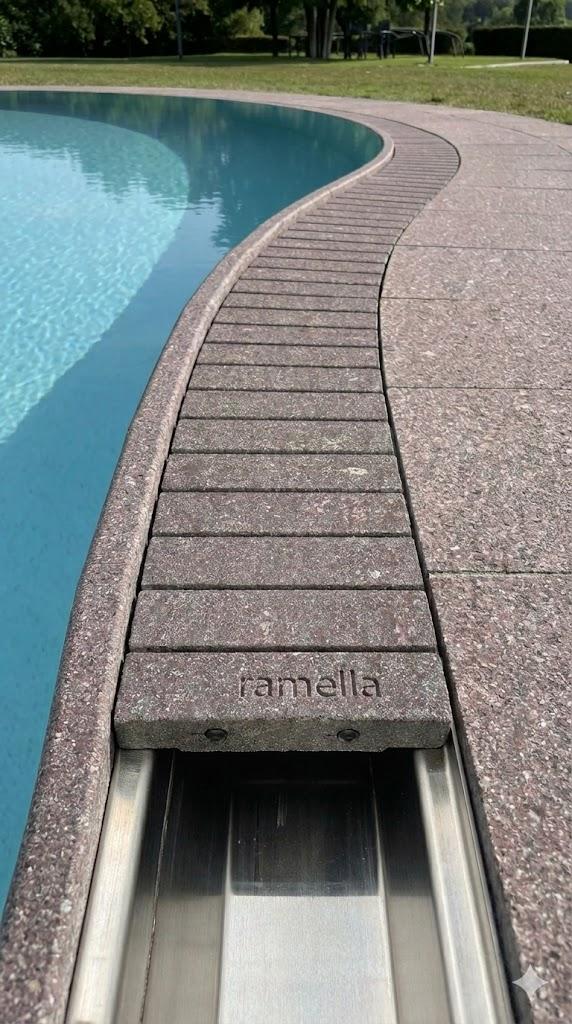

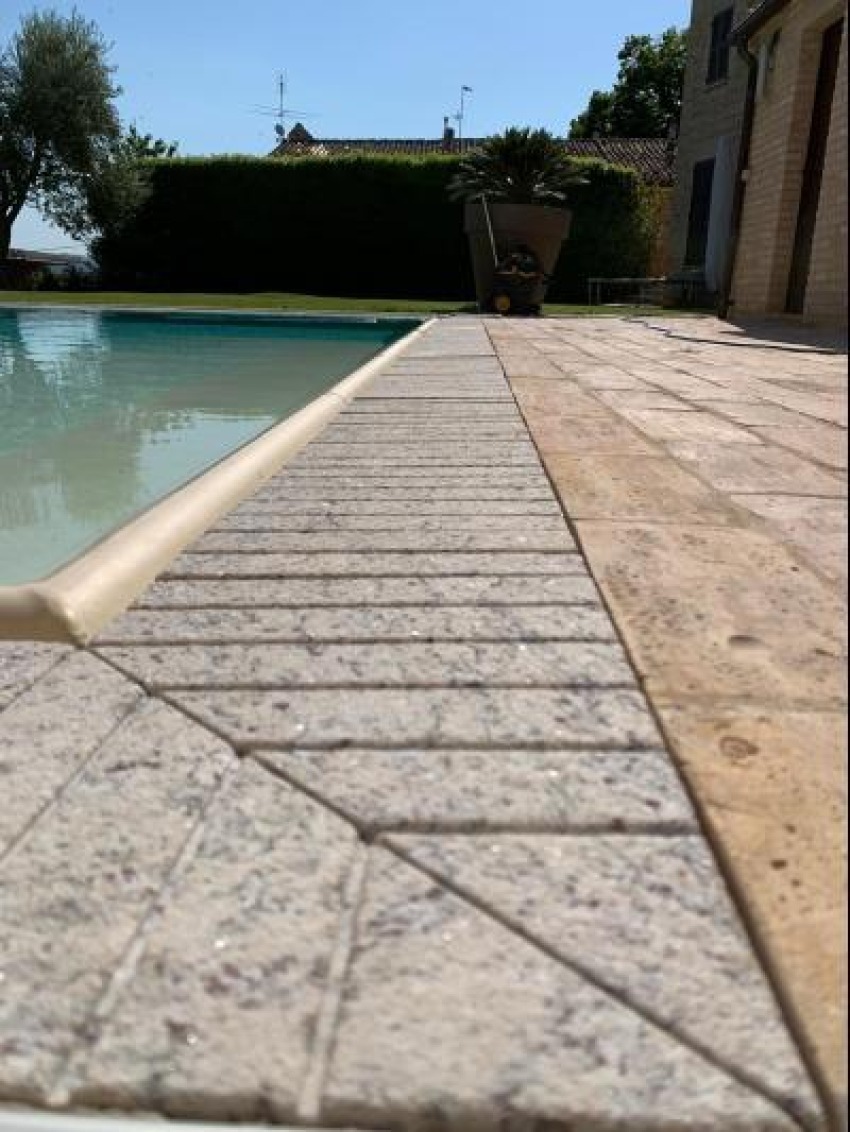

The flexible stone grate for your swimming pool
Elegant and performant
_61bc1dd4fc_.jpeg)
_047e728446_.jpeg)
_1e7b7ba641_.jpg)
_39f4e5aa28_.jpg)

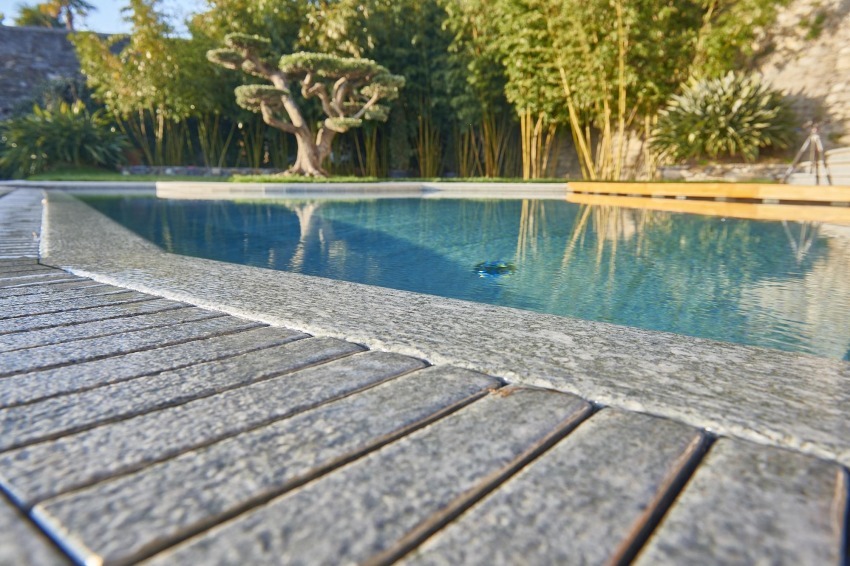

Why choose a flexible stone grate ?
The different combinations of materials and finishes give to the pool an elegant and refined touch.
A less impactful and more performing natural alternative to plastic grates.
The advantages:
- Easy and
quick installation. No labor experienced
assistance required

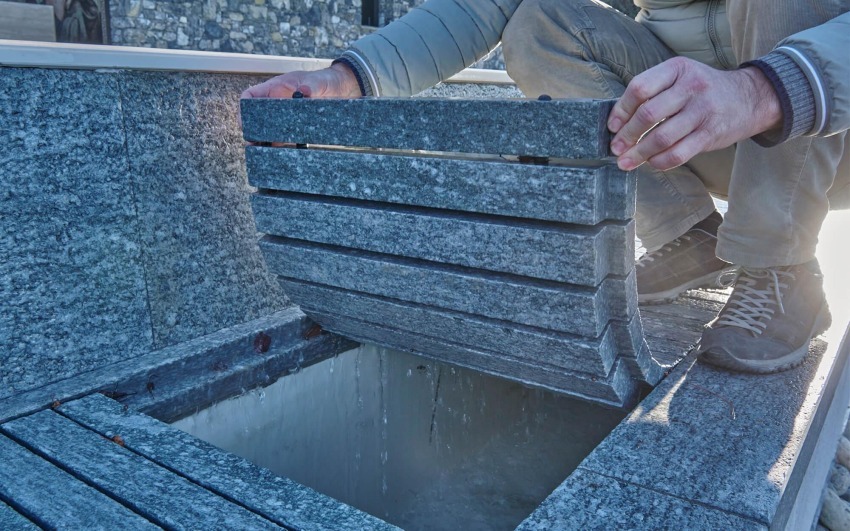

- Modular
elements easily
removeable for cleaning and
inspection
- Natural
stone and granite ensure hygiene and resistance to atmospheric agents and
chlorine
- Naturally
non-slip and anti-aging material
- Excellent load bearing and mechanical resistance to shock and stress
- Each element is designed to allow the proper drain and outflow of chlorinated water to prevent stagnation which could cause mold and mildew
- Does not
require site measurements with templates, therefore reducing the processing
cost

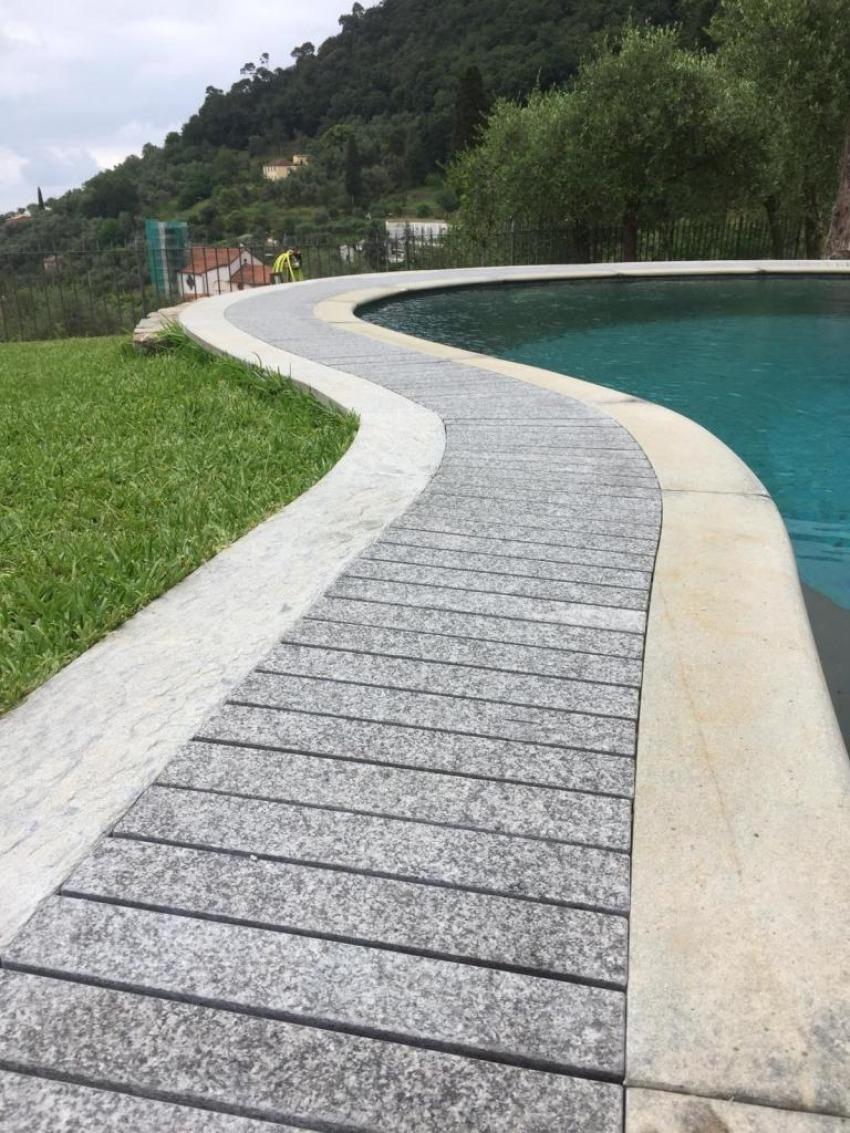

- Adaptable to any type of edge layout, reduced cost of curved elements with savings of up to 50%

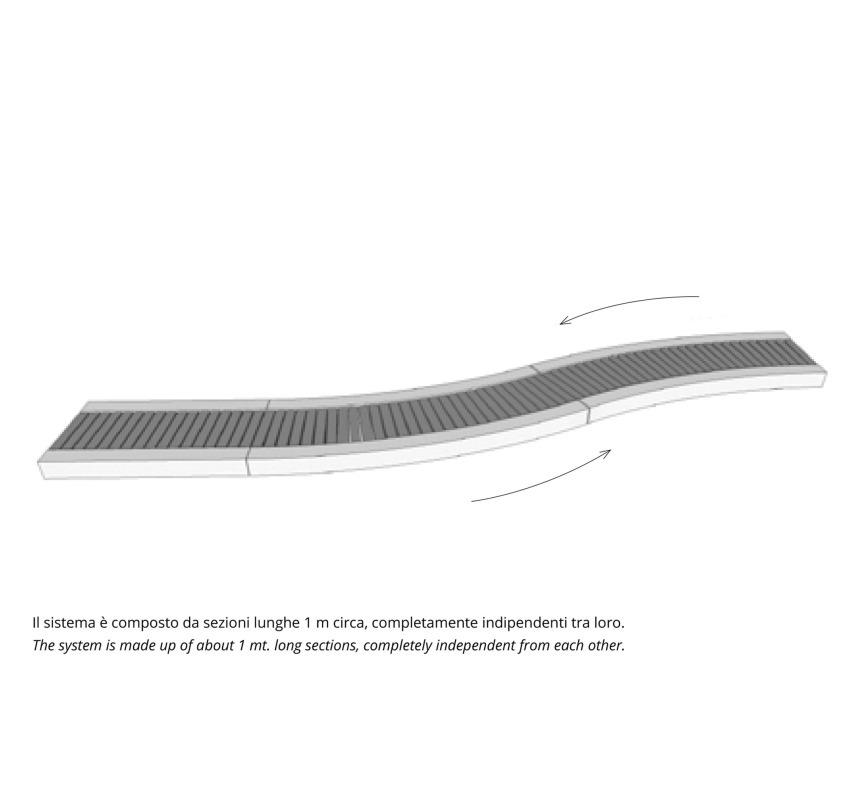

The system is made up of about 1 m. long sections, completely
independent from each other

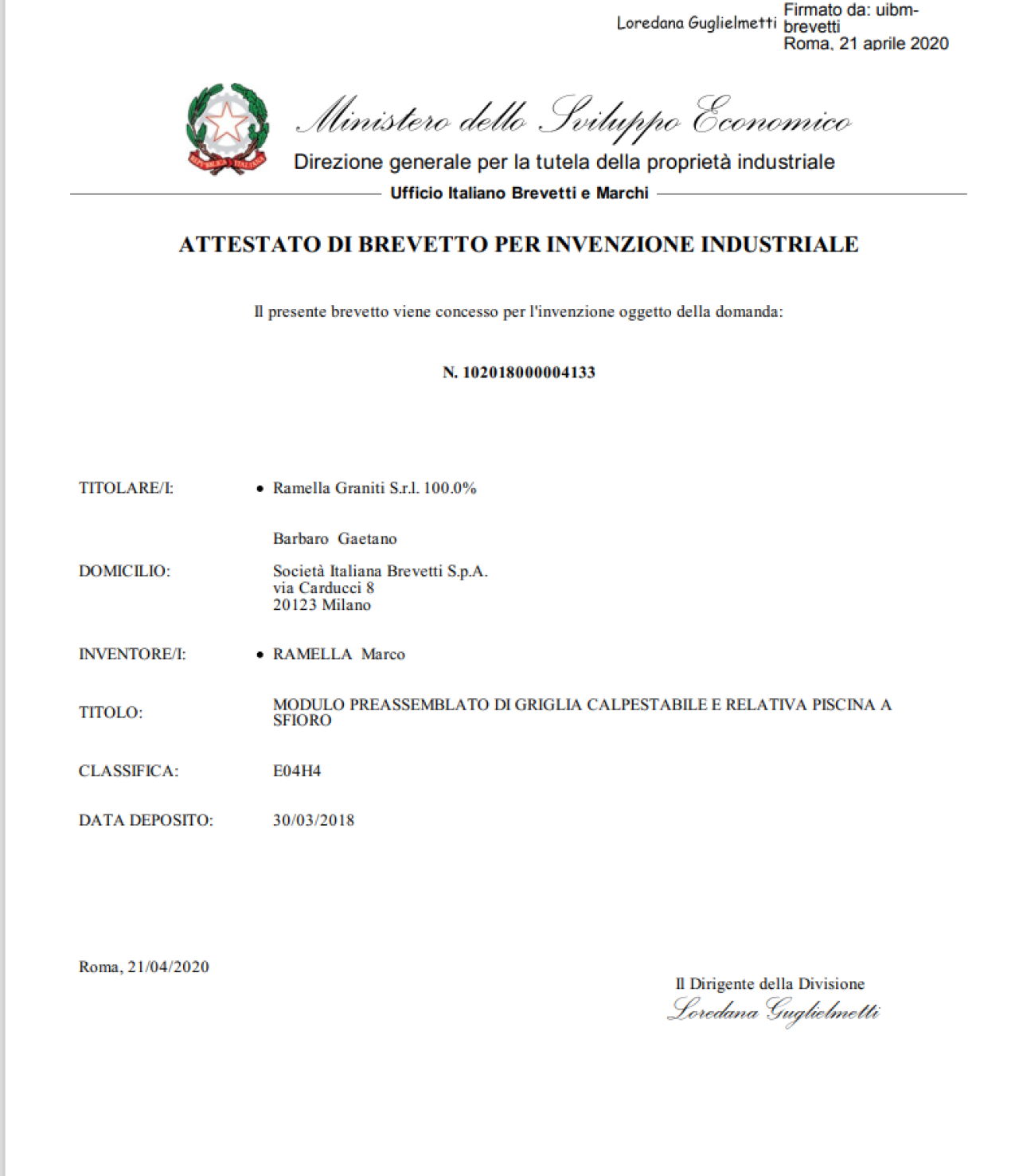

An innovative technology
that has been
patented
Certify to guarantee
Innovation means finding new solutions and guaranteeing
results.
Alongside the patent, these are our certifications
• Slip resistance: slip class R 12 (excellent) ramp method
with shod feet
• Slip resistance: slip class C (excellent) ramp method with
wet areas crossed with bare feet
• Resistance to chlorine: in a concentration equal to 1.8
mg/l that is the maximum concentration allowed for swimming pools, with a
visual test method: no sign was found.
• Microbiological control: good and discrete measured
parameters, between 1 and 6 UFC/24cm2 at 36 ° and between 32 and 40 UFC/24cm2
at 22 ° analytical method M 186.
• Flexural strength: with UNI EN 12372 method: Breaking 208.86 kg / cm2 - 5500 N.

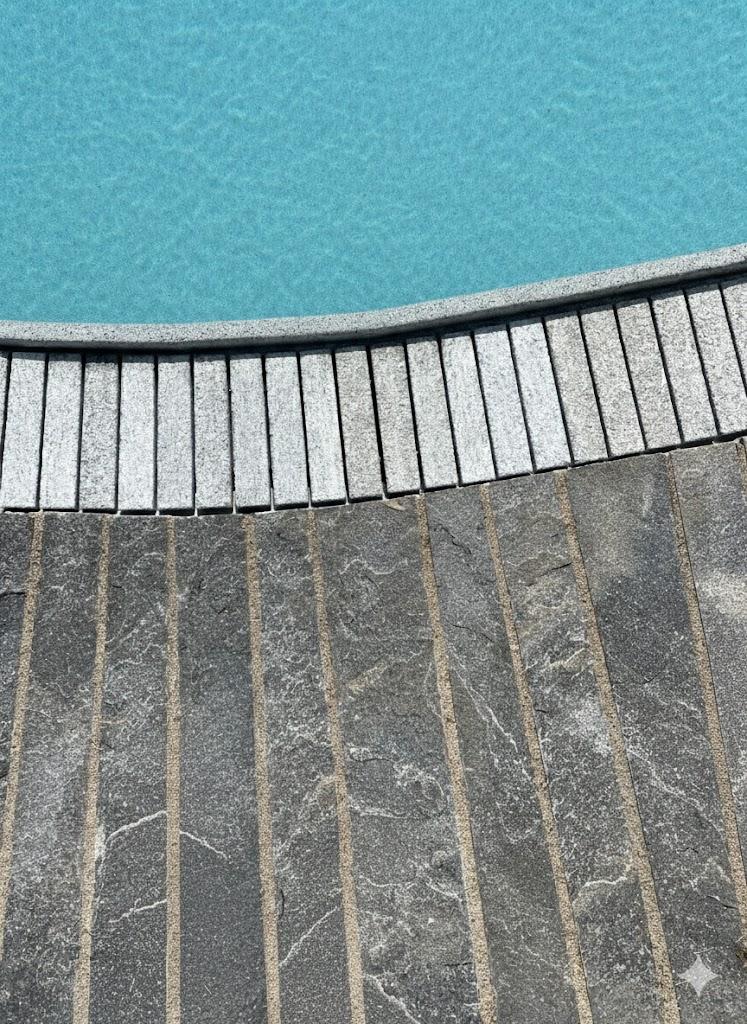

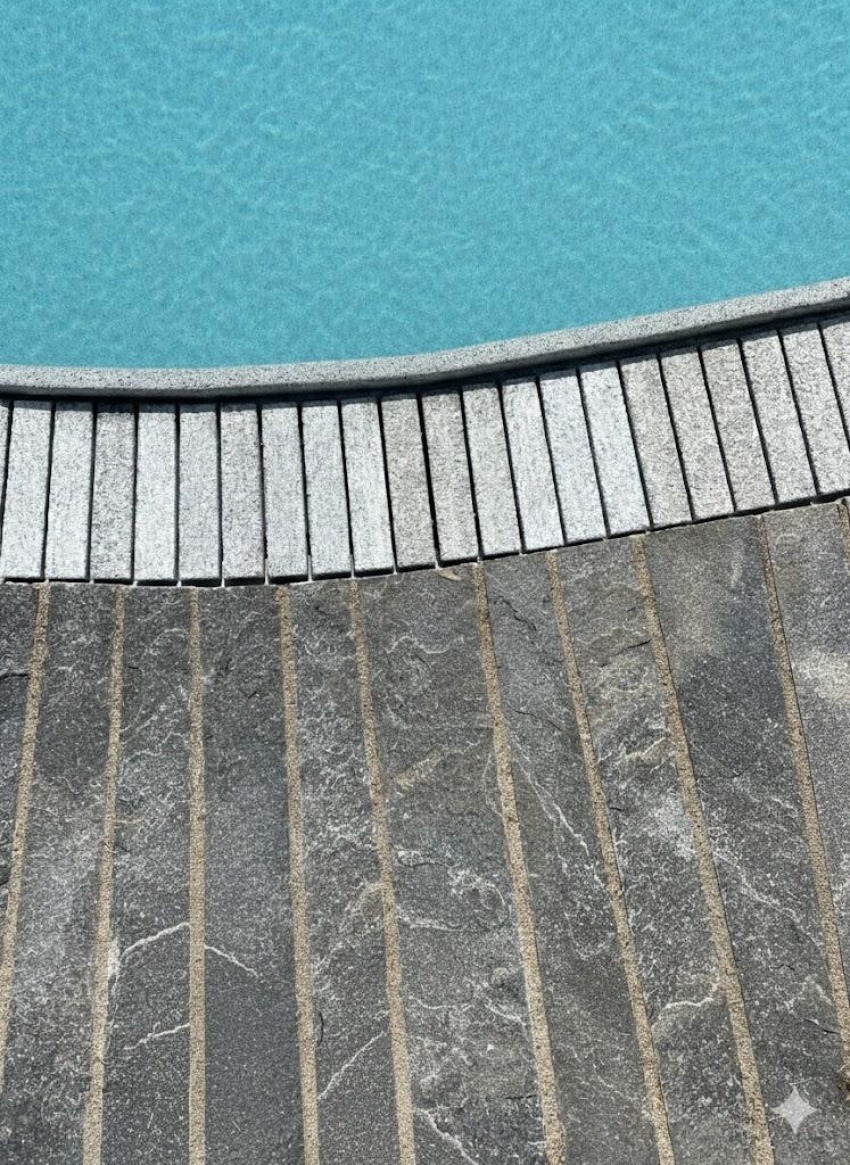

All tests were performed on samples of Luserna stone.

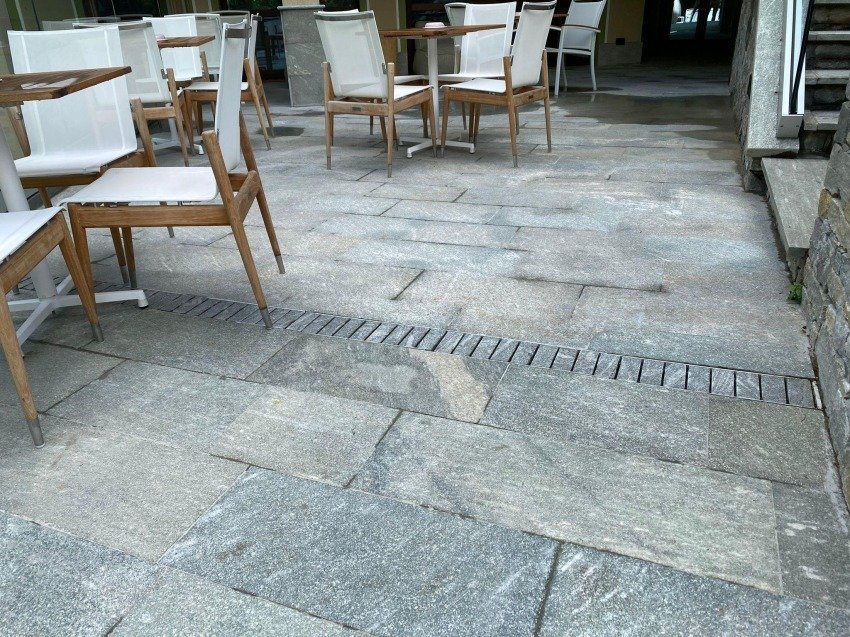

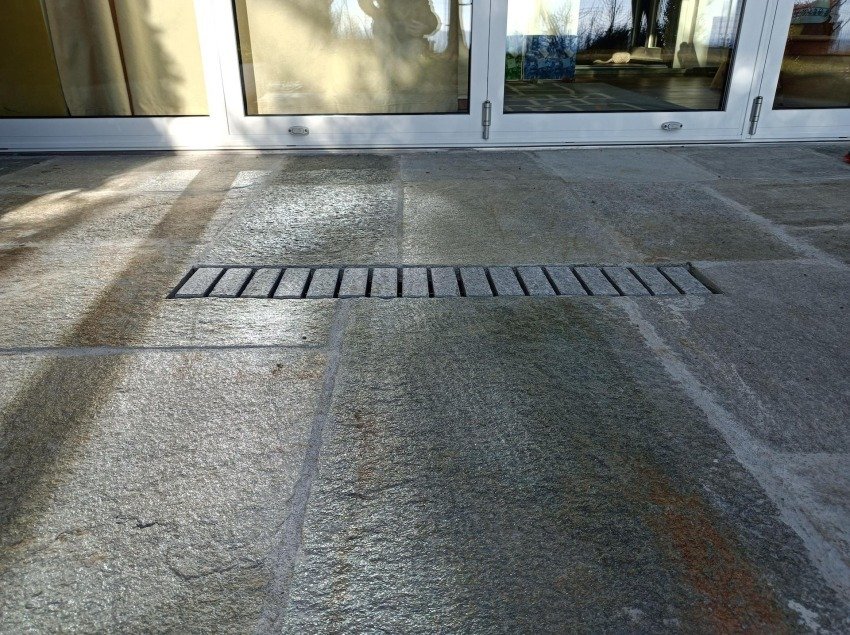

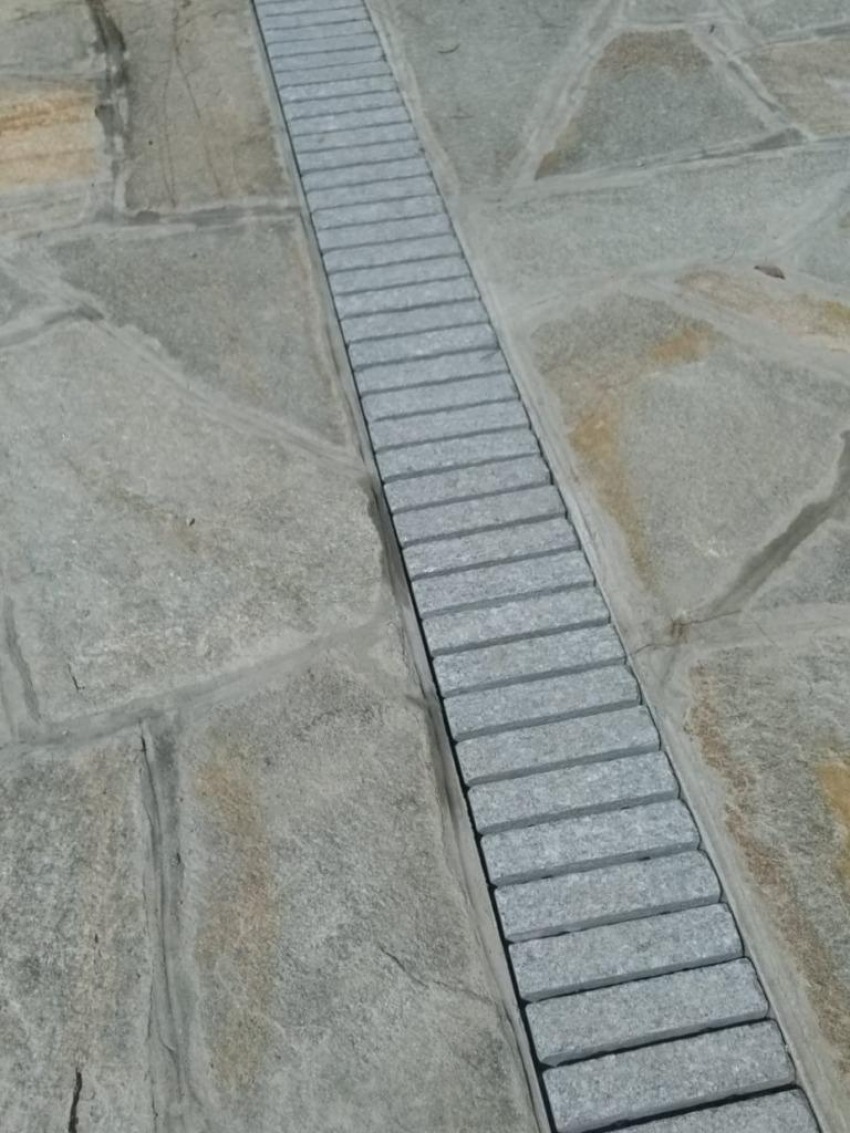

Sfioro CarGo

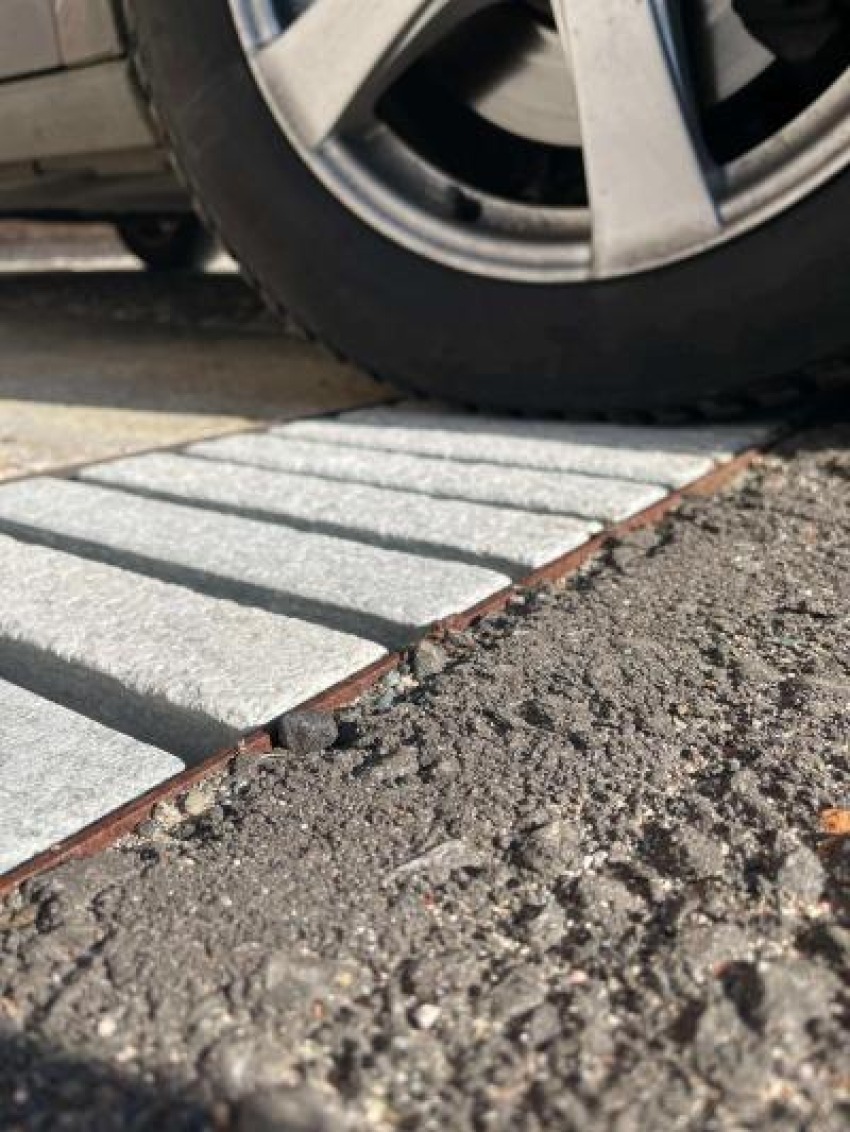

The Sfioro system becomes pedestrian and driveable
For public spaces

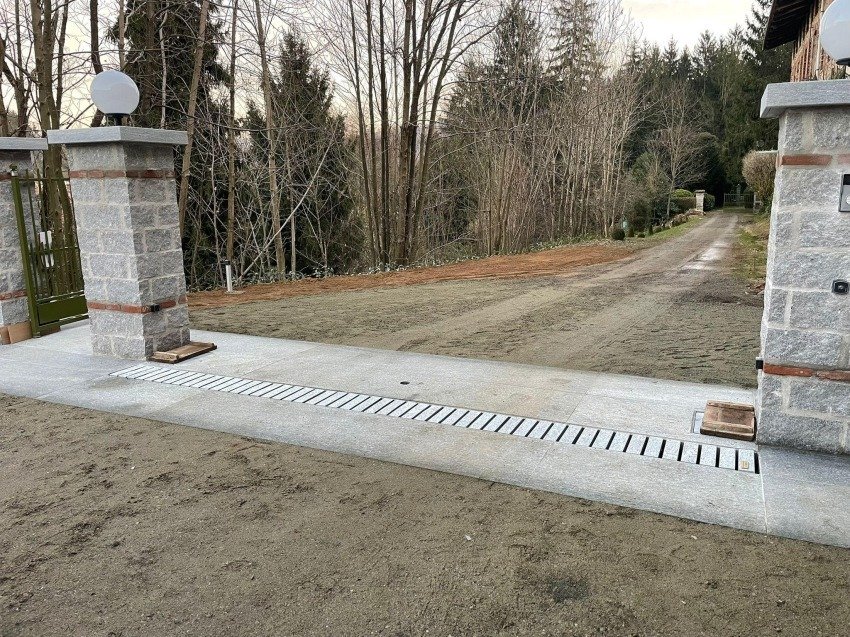

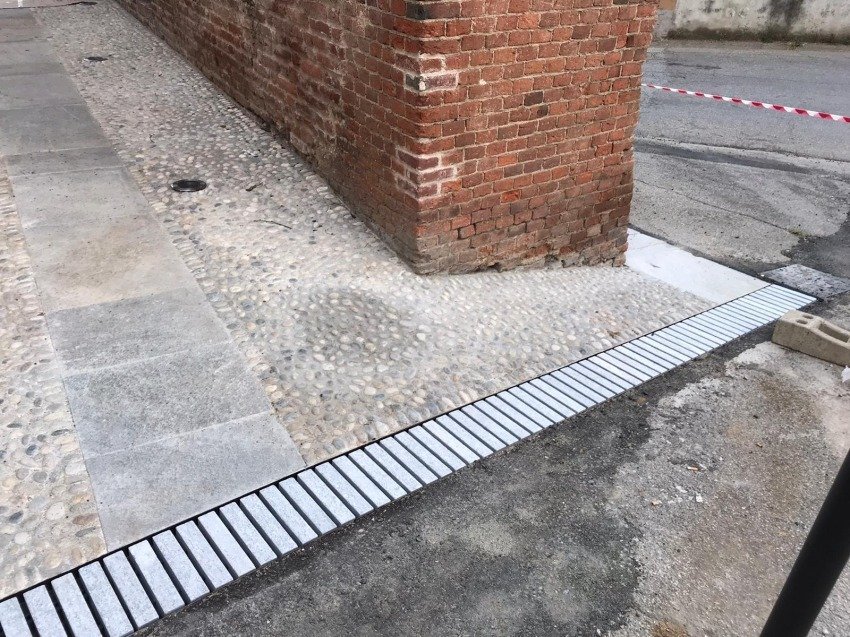

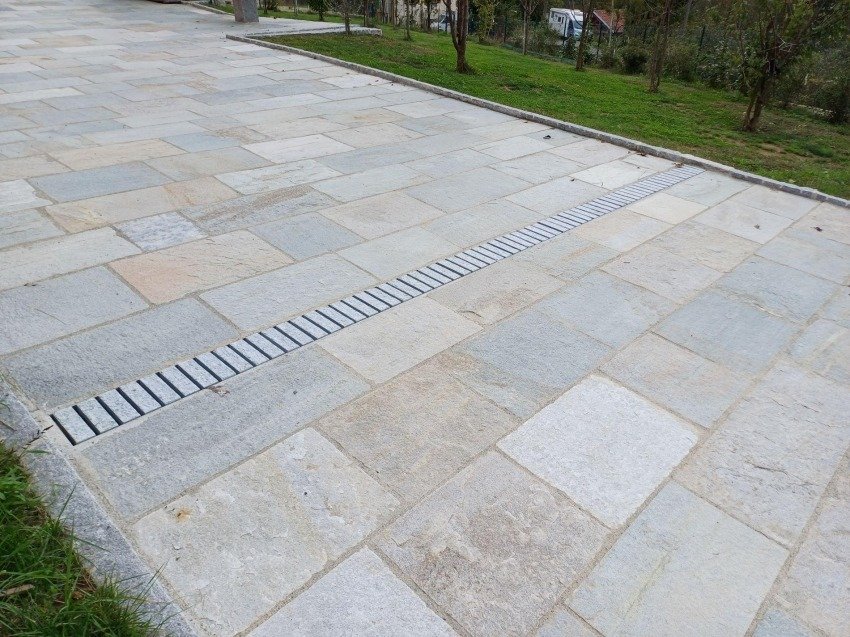

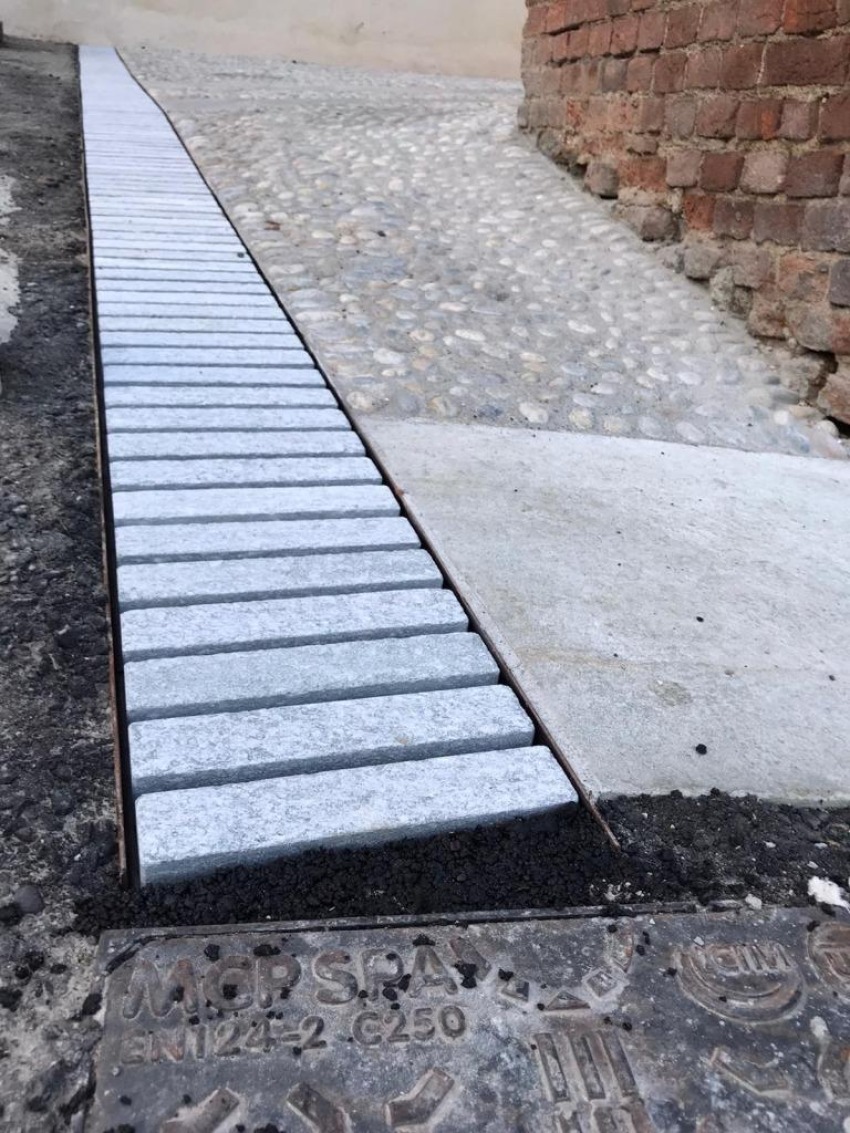

From the same technology of Sfioro comes Sfioro CarGo , designed to drain and remove rainwater from squares, car parks, garages, courtyards, gardens and large squares.
Thanks to the natural characteristics of the stone that
allow resistance to loads, chemical and atmospheric agents, longevity and

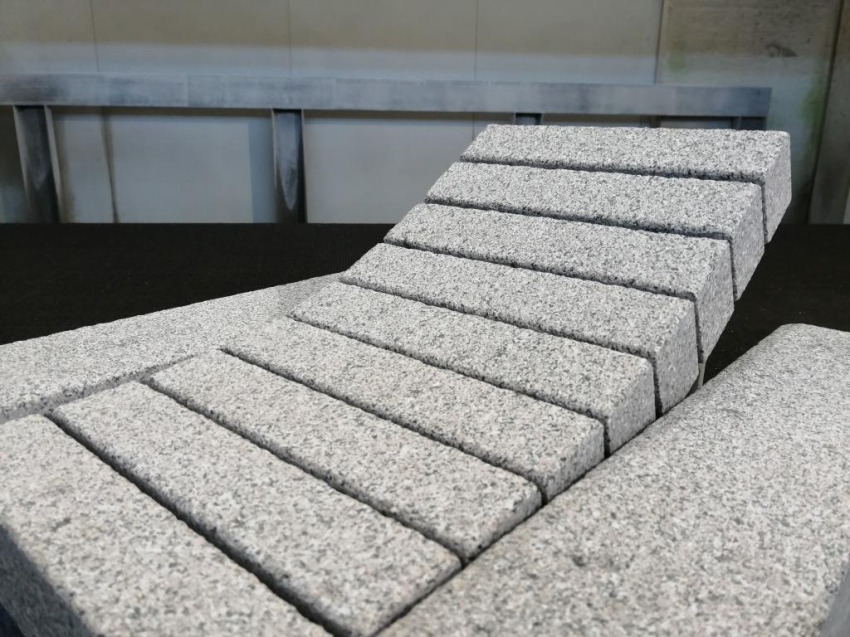

formal elegance, the Sfioro Cargo modular grates
are very interesting for new realisations or replacements
of ruined and obsolete grates and drains.
The modules of Sfioro CarGo are easily removable for inspection and cleaning, adaptable to any type of pre-existing drainage channels or supports.

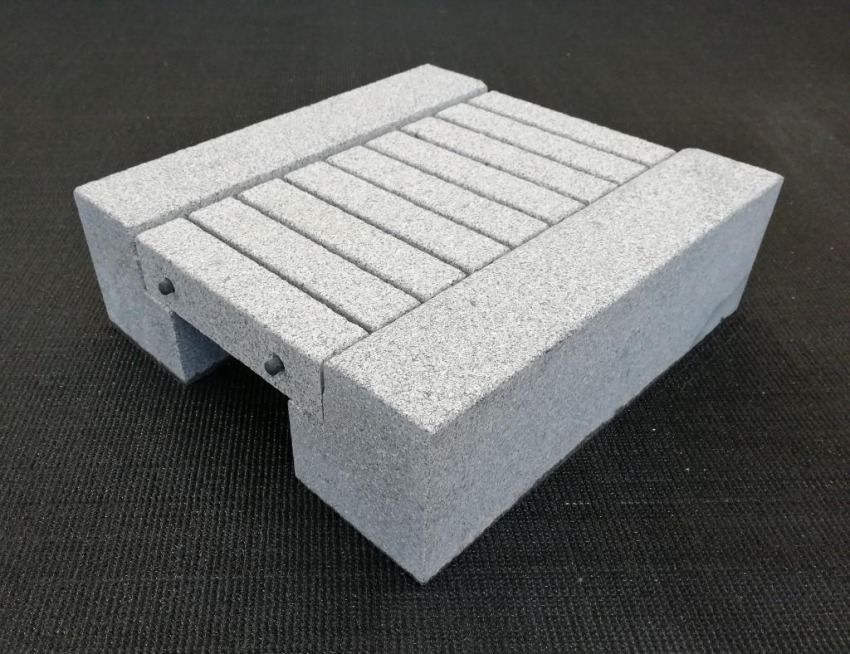

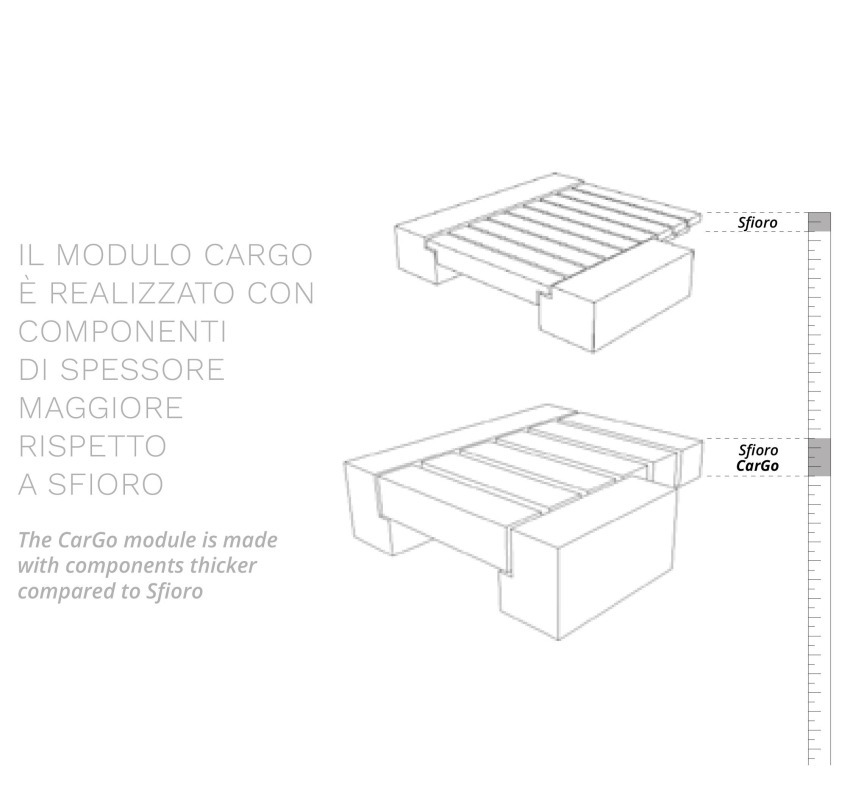

The CarGo module is made with components thicker compared to Sfioro
Discover our achievements with the "Sfioro CarGo"
A CUSTOMIZABLE AND ADAPTABLE SYSTEM
......to create personalised solutions
Suitable for different contexts
On manhole covers and
drainage channels, Sfioro CarGo is customizable in
finishings, dimensions
and materials.
The support section can be made ad hoc and is adaptable to
most of the existing channels.
A special support in stone or steel can be provided as a
guide to place the the Sfioro CarGo grate.
A CERTIFIED AND GUARANTEED PRODUCT
UNI EN 1433: 2008
The grates Sfioro CarGo can be certified according to the UNI EN 1433: 2008 European standard in resistance class B 125 and marked CE. Sfioro CarGo can be used for roadways, pedestrian streets, docks and car parks.
Through certification and CE marking, quality production
processes, compliance to reference and safety specifications are
guaranteed thanks to periodic monitoring.
